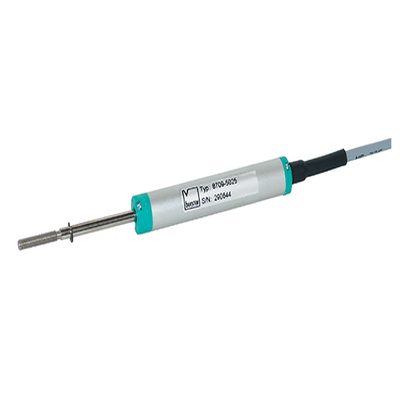

位移計 Displacement Sensors
| 品牌 | Burster |
| 型號 | 8709 |
| 操作電流 | < 0.1 uA |
| 解析度 | 10 um |
| 移動速度 | < 10m/s |
| 阻抗值 | ± 20% |
| 操作溫度 | -30℃ ~ 100 ℃ |
| 防護等級 | IP60 |
建議選配
Potentiometric displacement sensor Range 100 mm Model 8709-5100
Ball joint (refer to drawing, in the lower left) Model 8709-Z002
Connector 12 pin, for burster desktop devices Model 9941
Connector 9 pin, for DIGIFORCE ® 9310 Model 9900-V209
Connector 5 pin, for extension Model 99121
Mounting of a connector to the sensor cable Order Code: 99004
