Load Cells

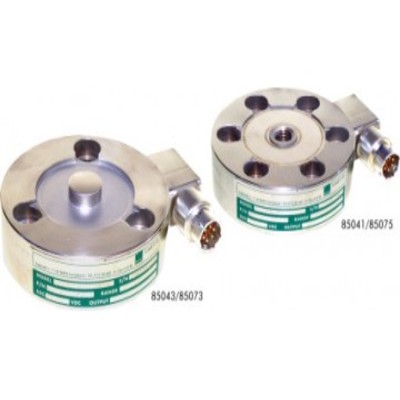

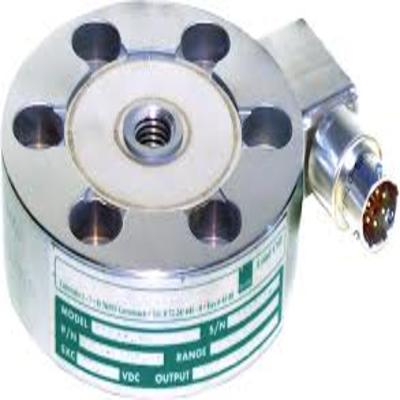

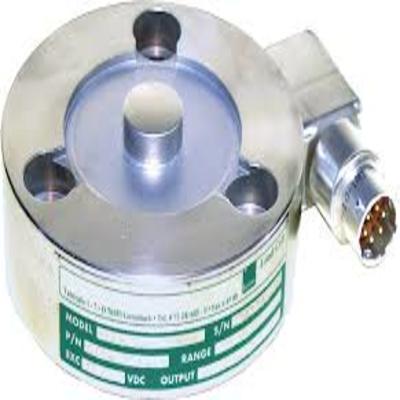

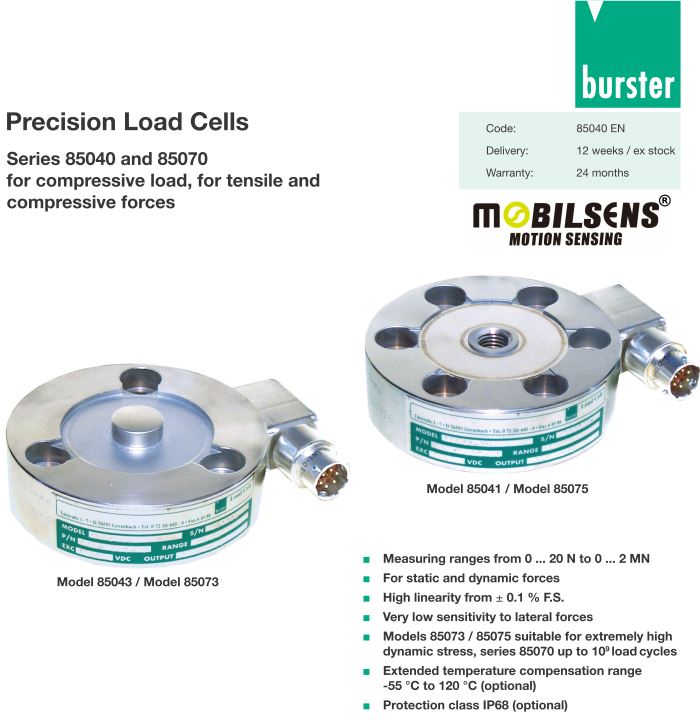

85040/85070 Precision Load Cells

85040/85070

. Available micro measurement range 0-20N to 0-2MN
. Available for static and dynamic
. High linearity, ± 0.1 % F.S.
. Very low sensitivity to lateral forces
. Models 85073/85075 for very high dynamic stress
. 85070 Series up to 10 to the 9th power cyclic load
. Temperature range -55 °C ~ 120 °C (optional)
. Protection class IP68 (optional)

Brand

  Burster

Type

  85040/85070

Accuracy

(85040)

  ≤ 0 ... 100 N     < ±0.2% F.S.

  ≤ 0 ... 200 kN   < ±0.1% F.S.

  ≥ 0 ... 500 kN    < ±0.2% F.S.

Accuracy

(85075)

  < ±0.1% F.S.

Range (85040)

  0 .... 2 MN

Range (85070)

  0 .... 1000 kN

Dynamic Load

  70% of capacity

Standardization

  2 mV/V

  3mV/V ; 85040 >100N



Supply Voltage

  10V DC

Protection

  IP68
