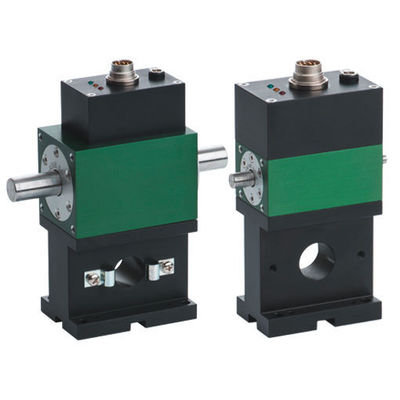

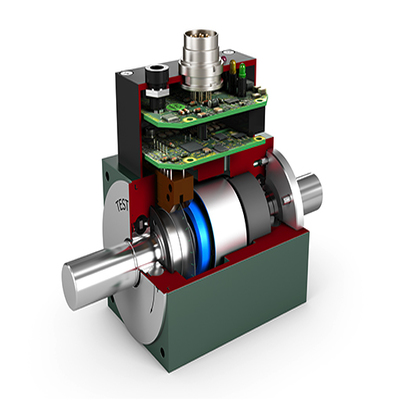

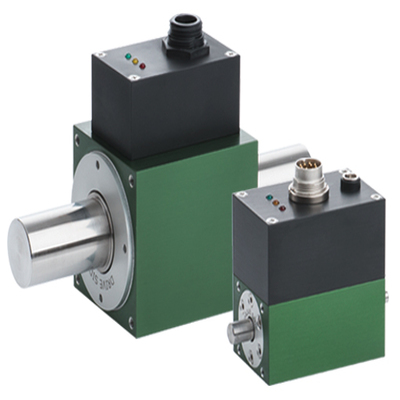

8661 Precision Torque Sensor (Rotating)

8661

． Measuring range 0 ~ ±0.02Nm to 0 ~ ±1000 Nm
． Linearity deviation ≤ ± 0.05 % F.S.
． The product is equipped with indicator
． 16-bit D/A converter
． Output signal 0-±10 V (optional 0-±5 V)
． The angle is a circle of 2000 pulses
． Speeds up to 25000 rpm

Information
SPEC

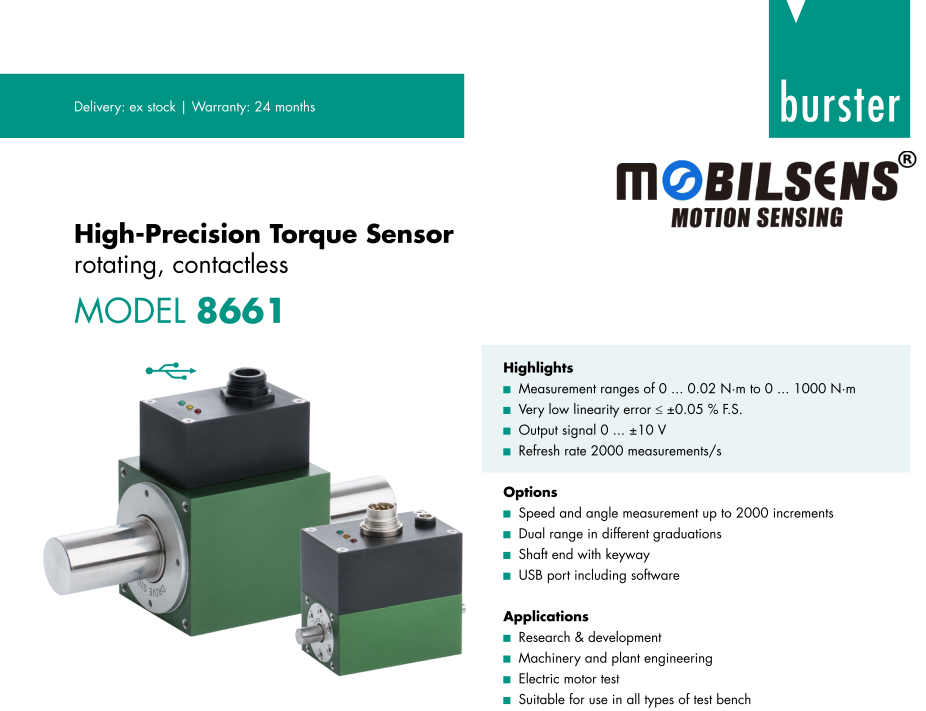

>>Datasheet(Download)

Brand	Burster
Type	8661
Accuracy	< ± 0.05% F.S.
Range	0 .... ±0.02 Nm 0 .... ±1000 Nm
Over Load	200% of capacity
Dynamic Load	70% of capacity
Speed	25000 rpm
Supply Voltage	10... 30V DC
Output Signal	± 10V
Protection	IP40
